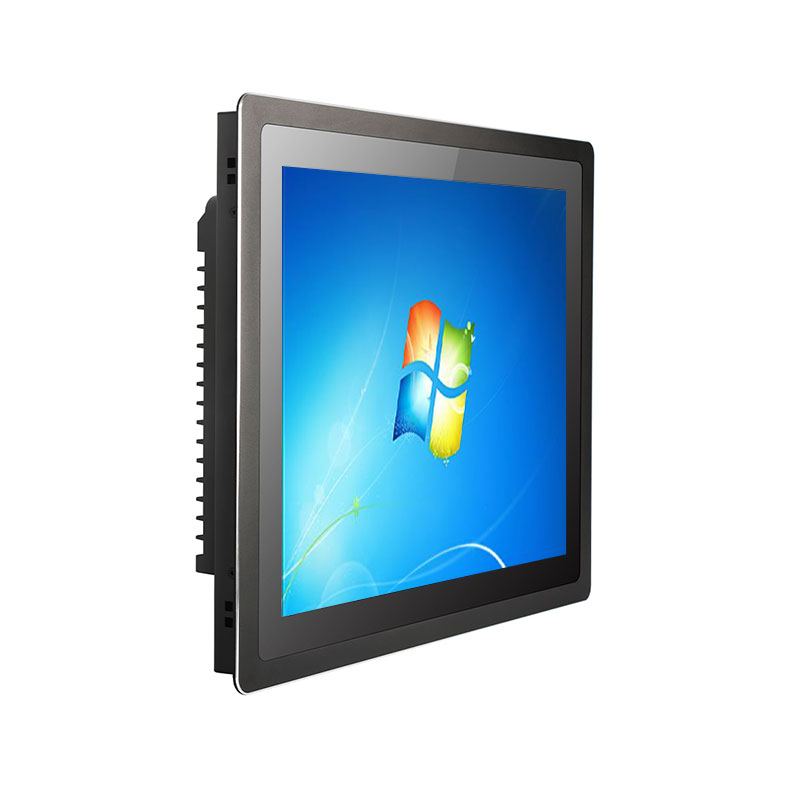

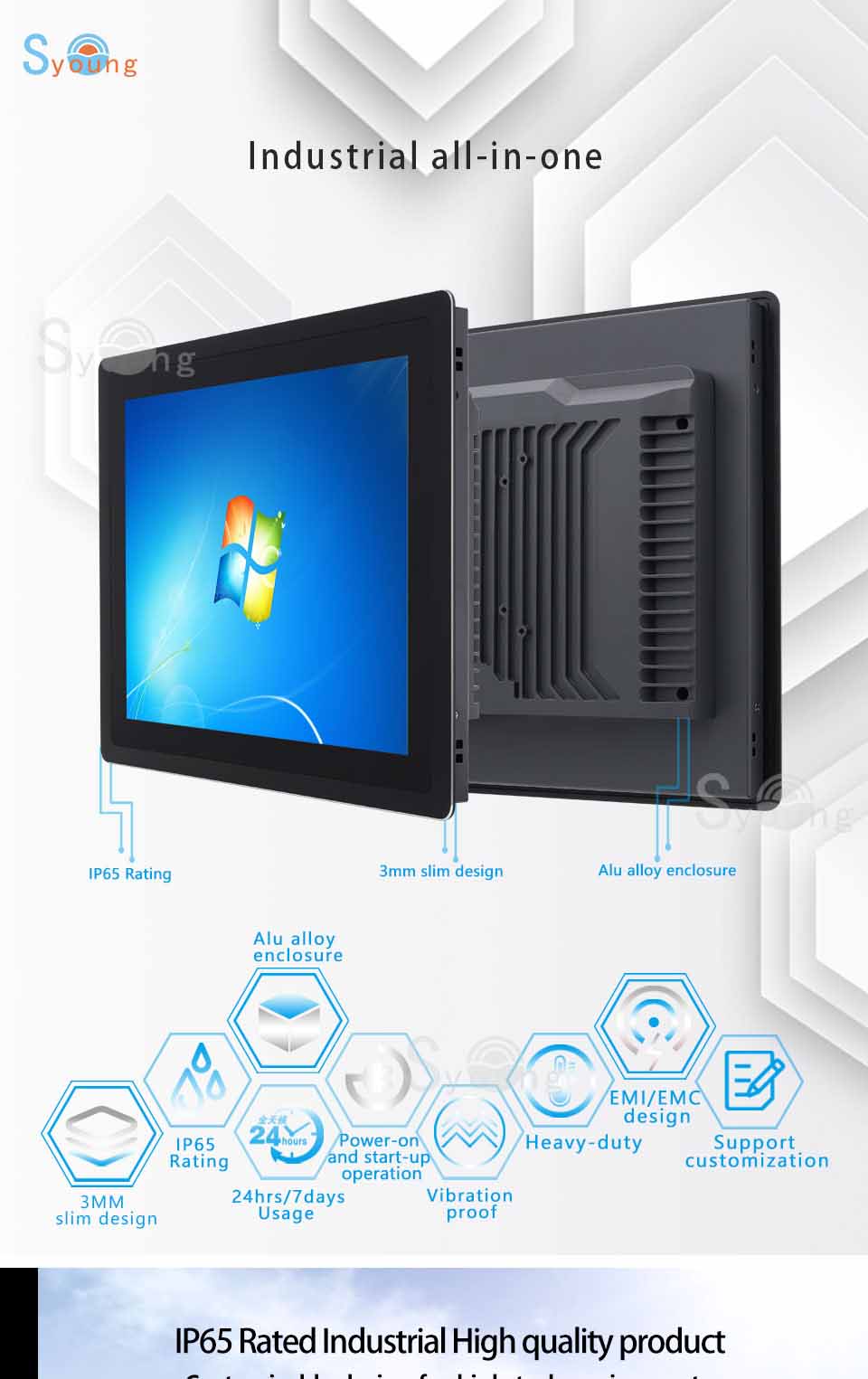

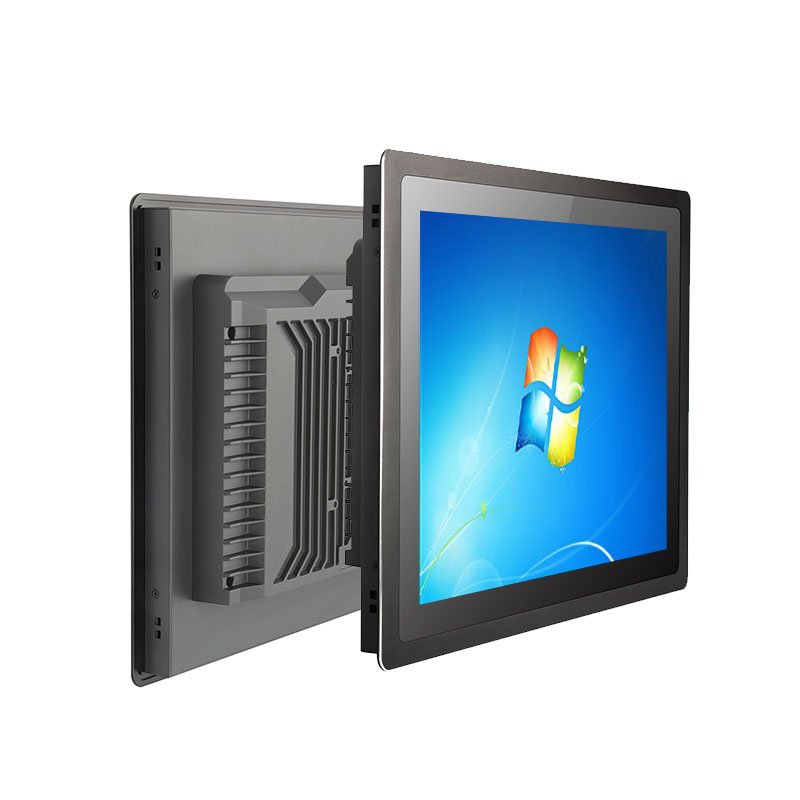

3MM Industrial all-in-one
Share
- Product Description
- Product Parameters
- Application
- OEM/ODM
- Download

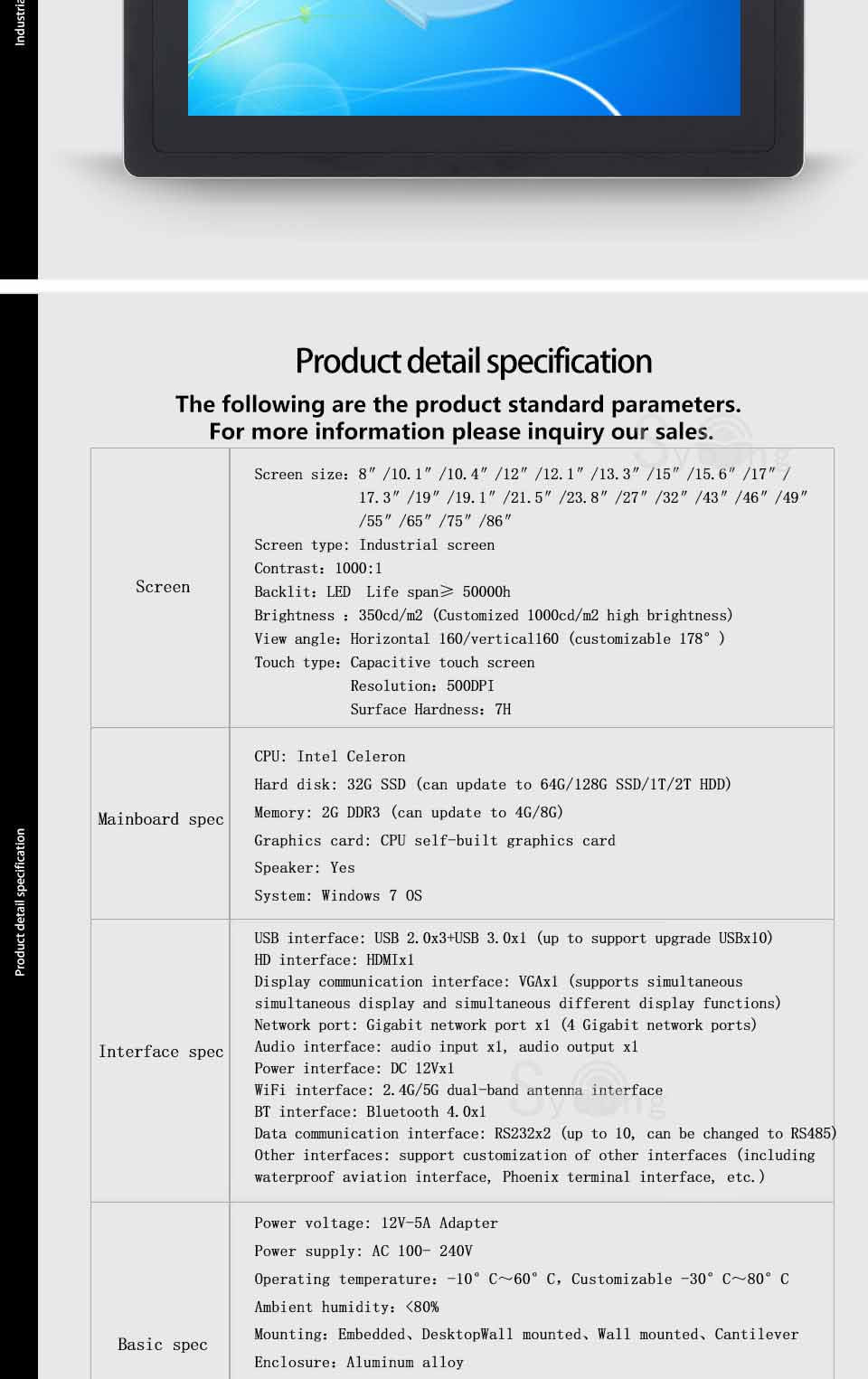

| Specification | Parameter | |
| Screen | size | 10.4¨ |
| Resolution | 1024×768 | |
| screen brightness | 300cd/m2 | |

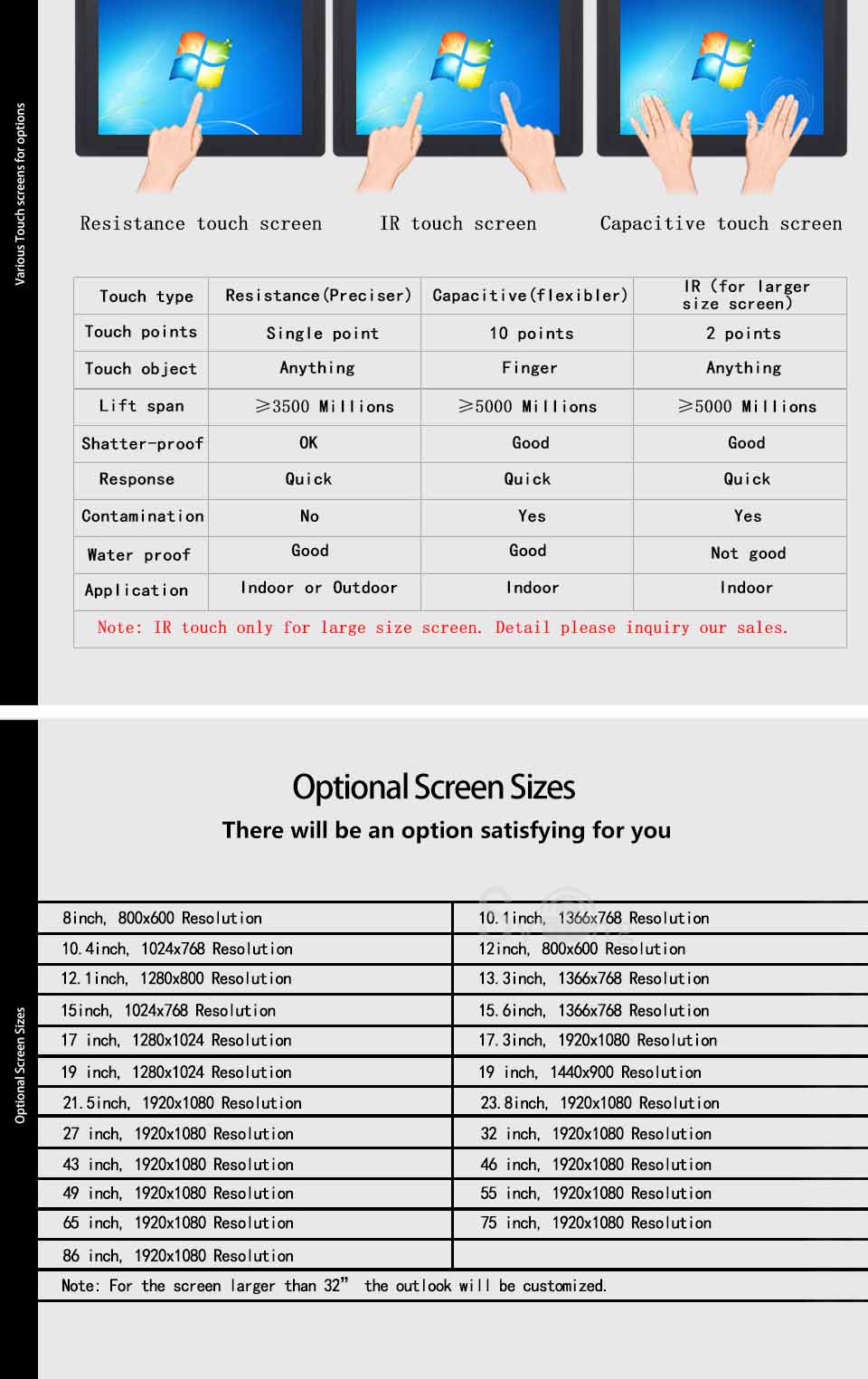

| Capacitive touch | Surface hardness | 6H |
| Number of contacts | 10 point | |
| Trumpet | Built-in empty | 2W+2W/8Ω； |
|
Hardware |
CPU | Intel Celeron J1900 quad core 2.0GHz |
| chipset | Intel Bay trail SOC | |
| GPU | Intel HD Graphics(Sandy Bridge) | |
| ROM | 2GB DDR3 | |
| RAM | 64G SSD | |
|

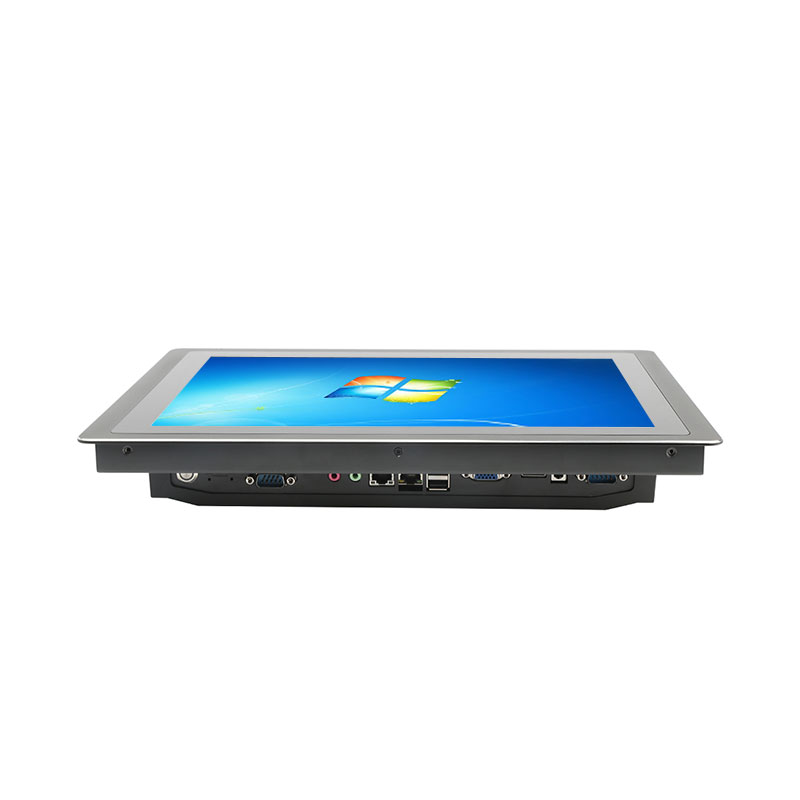

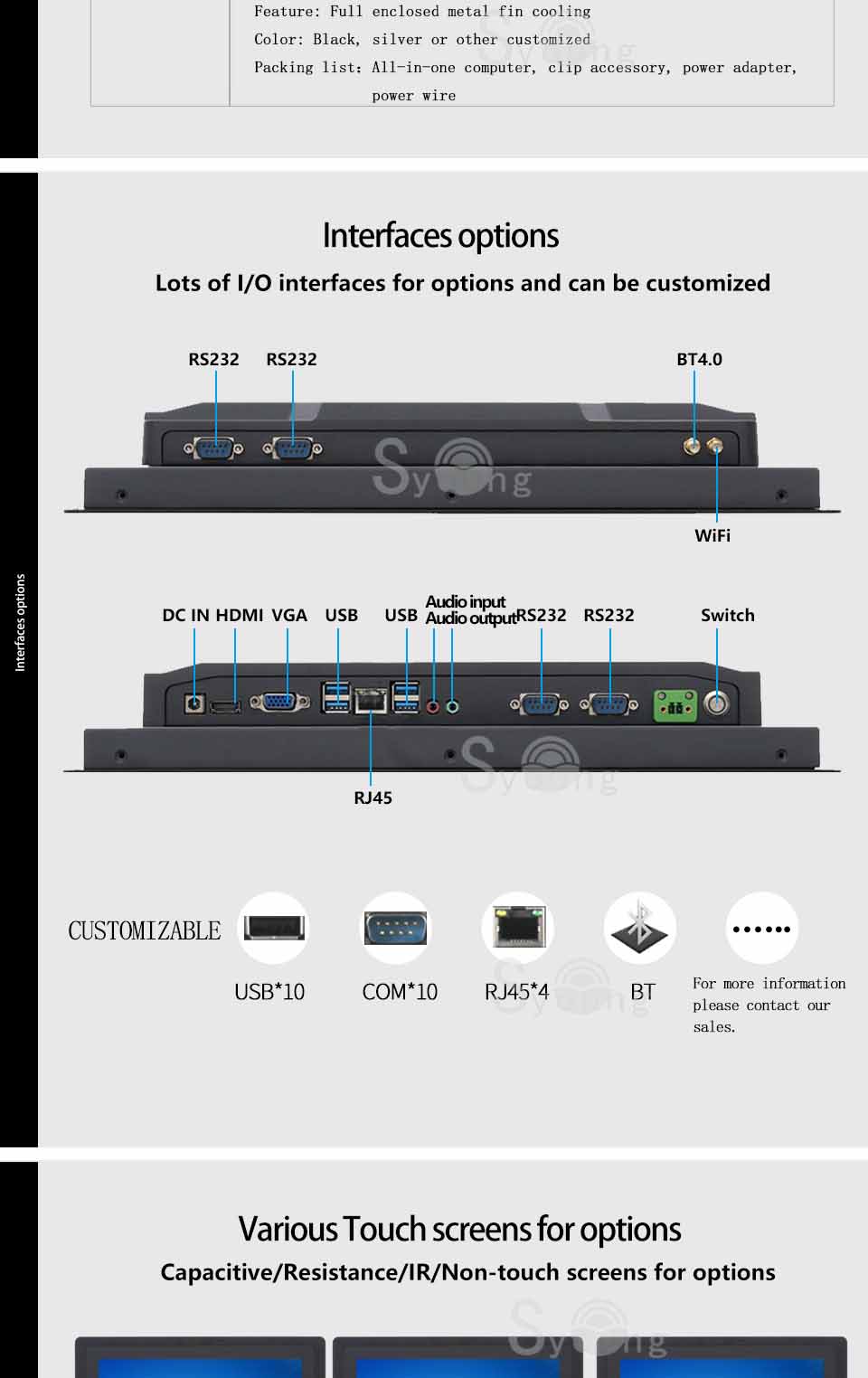

IO |
LAN |
1-way RJ45 network port support wake on LAN and PXE diskless boot function. WiFi |
| Audio |
Support audio output (green) Support microphone input (red) |
|
| USB |
USB 3.0*1 USB2.0*3 |
|
| RS232 | RS232*2 | |
| Display interface |
DB15 VGA HDMI |
|
| Button |
M12 me |
|

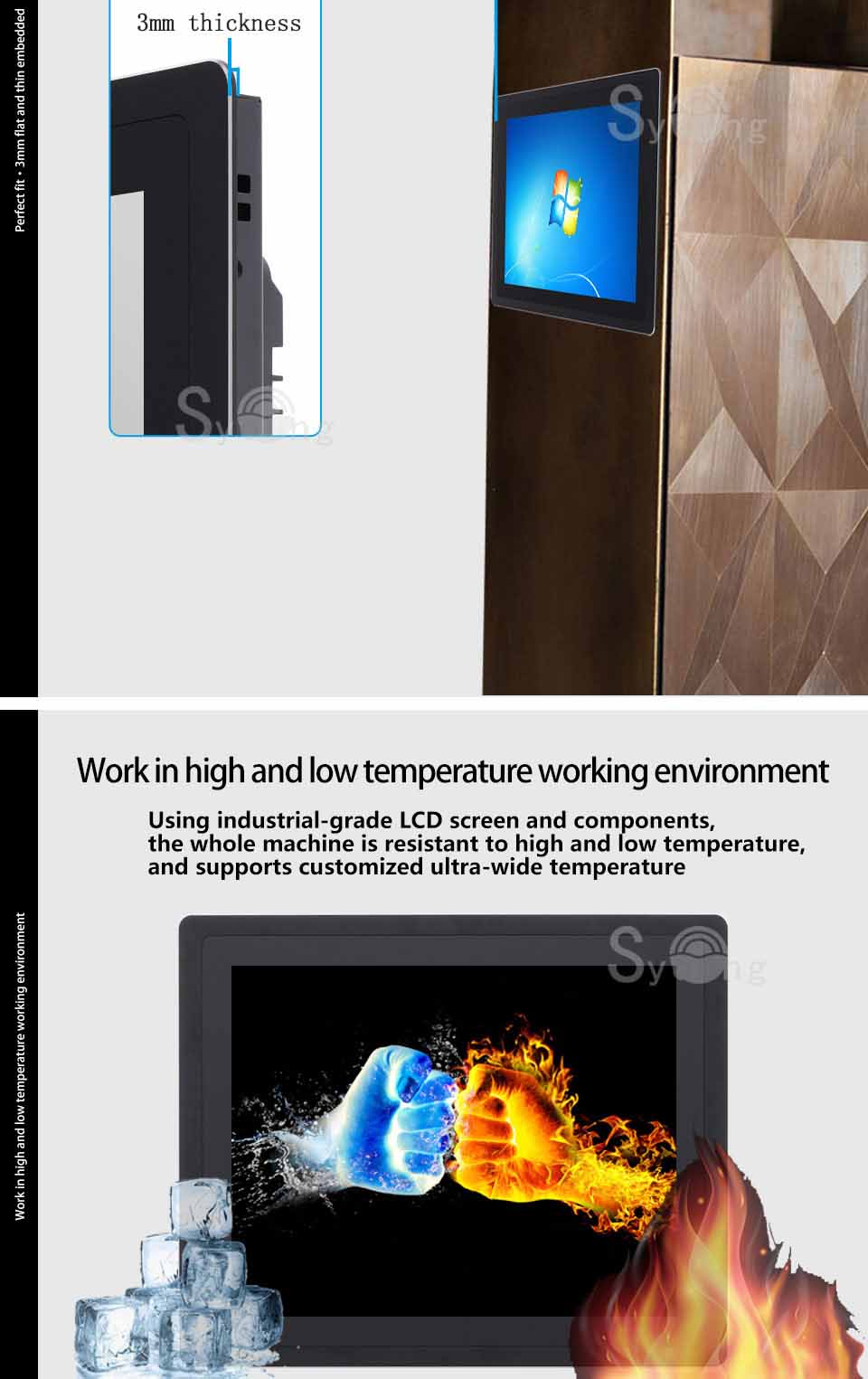

| Other | working environment |
Working temperature: -10~60℃; Working humidity: 5%~95% relative temperature no condensation |
| storage environment |
Storage temperature: -20~60℃; Storage humidity: 5%~95% relative temperature no condensation |
|
| Power on | BIOS supports power-on timed-on and remote power-on/off settings | |
| electronic dog | Support watchdog hardware reset function (256 levels 0~255 seconds) | |

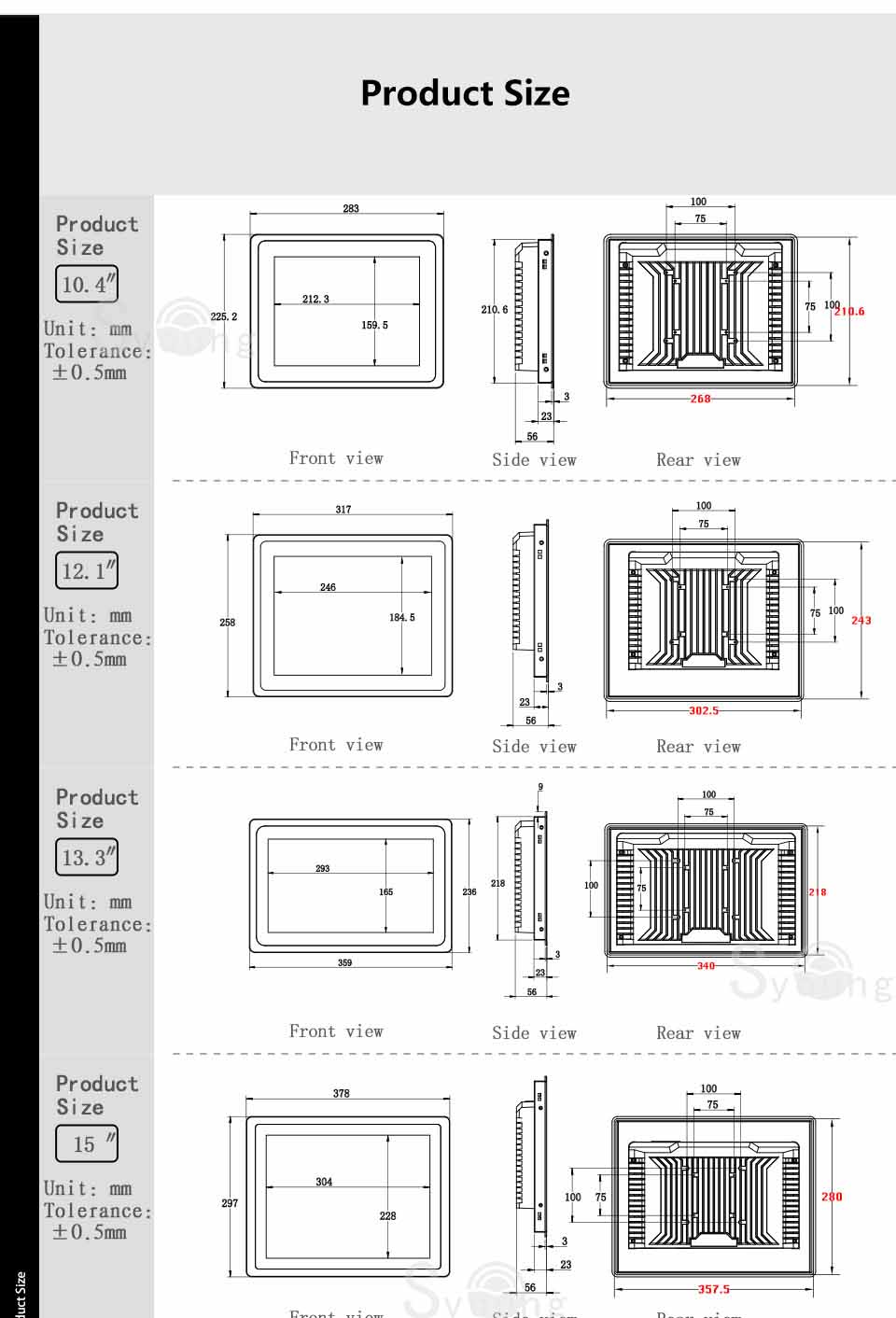

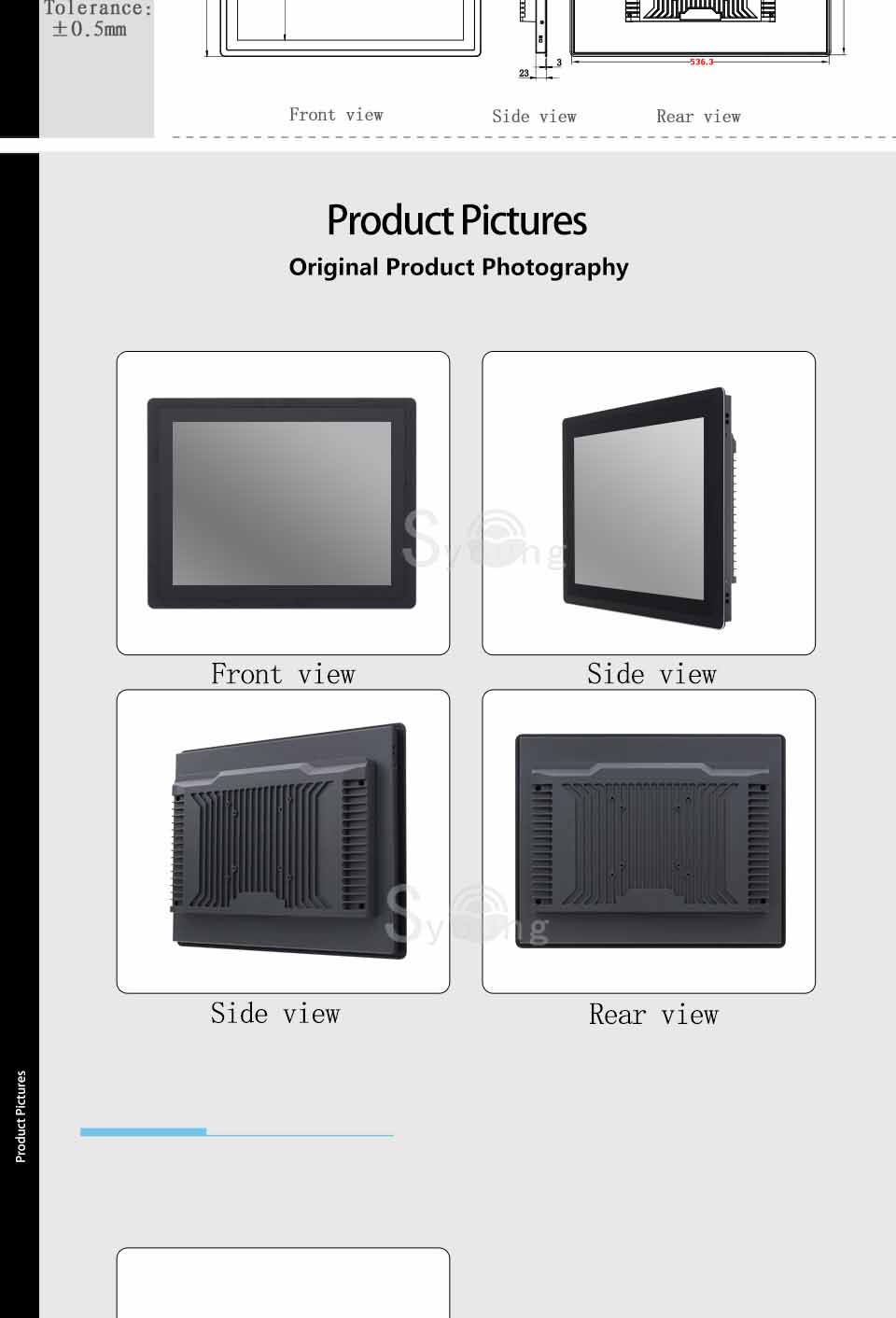

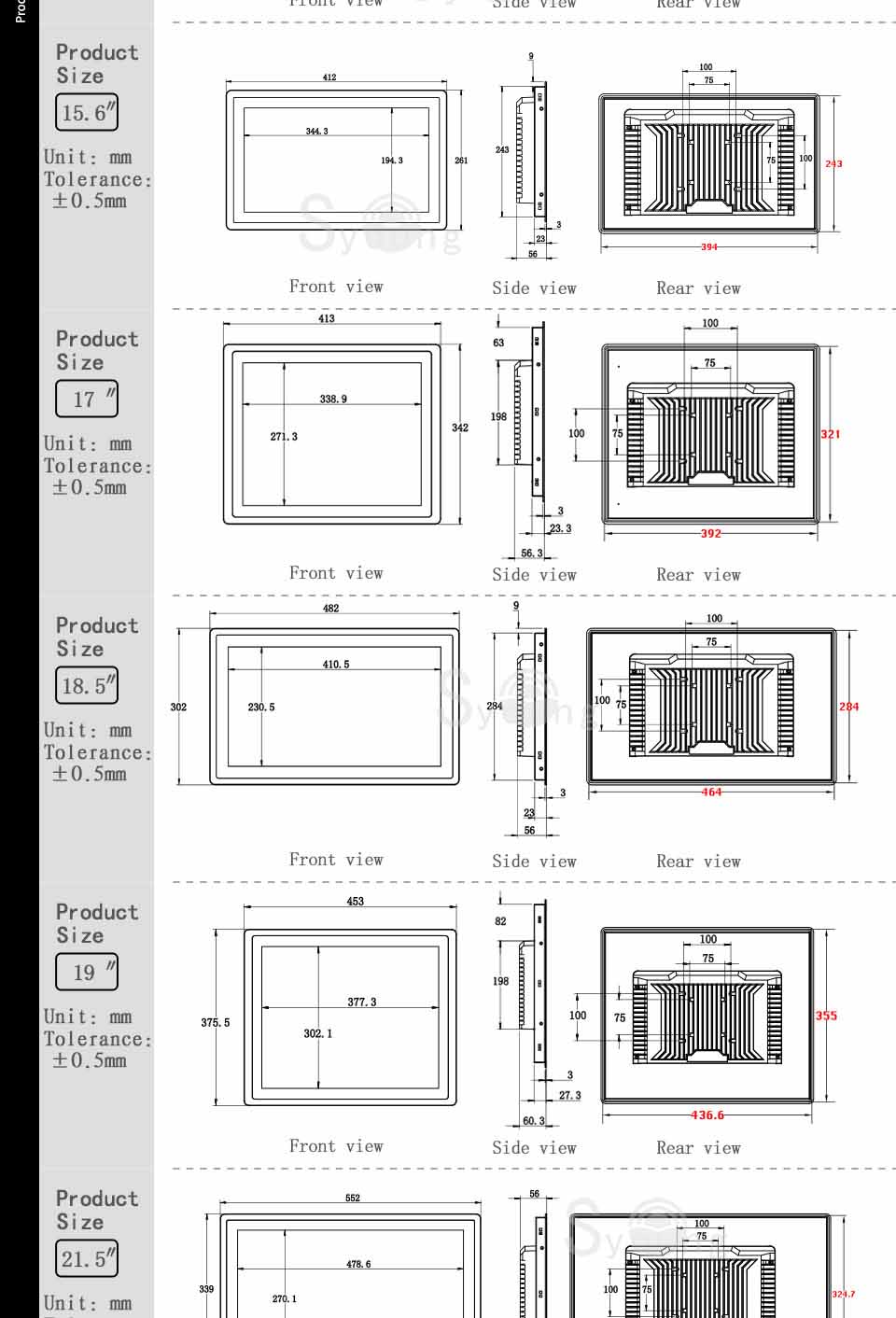

| Size | As shown below | |

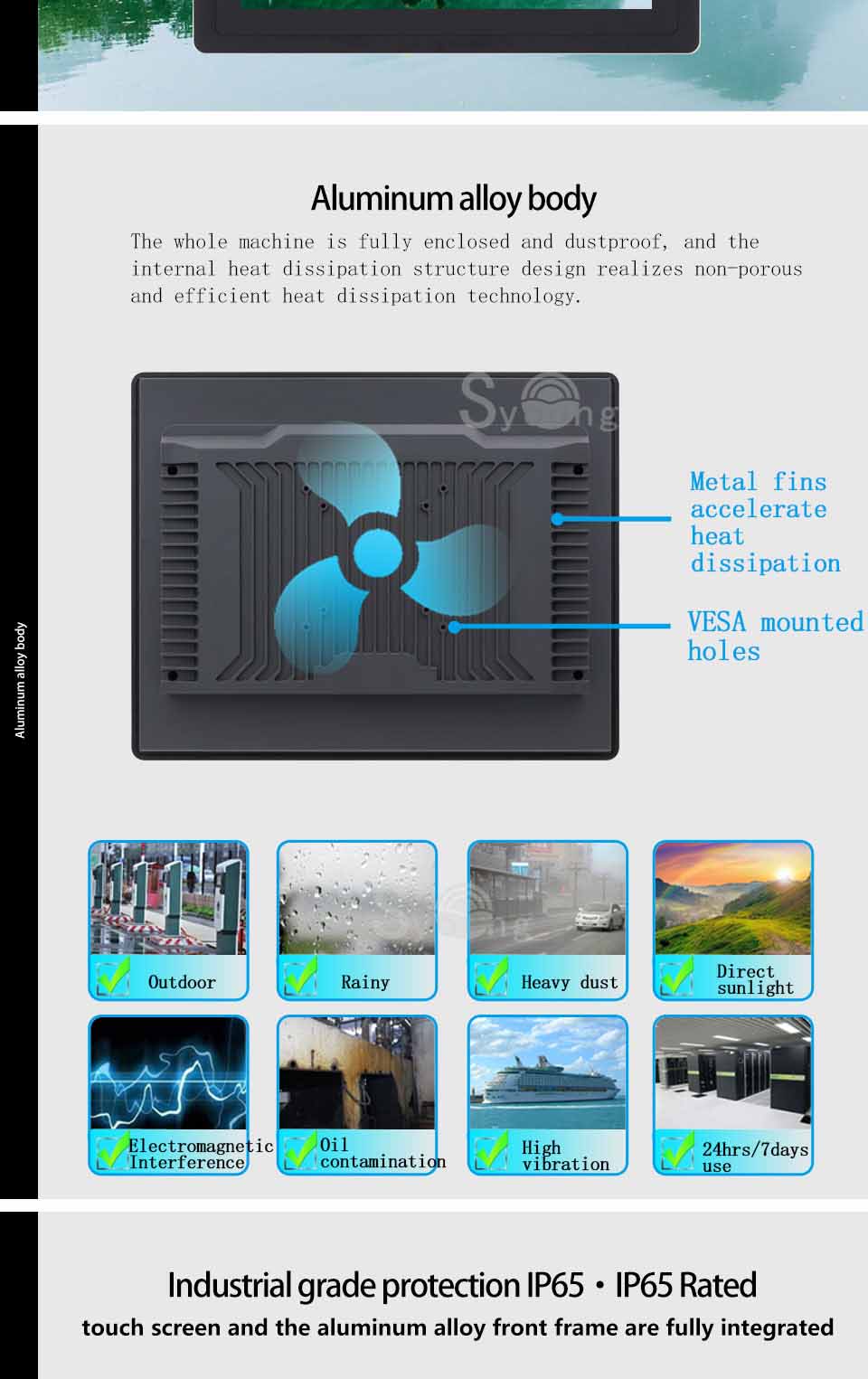

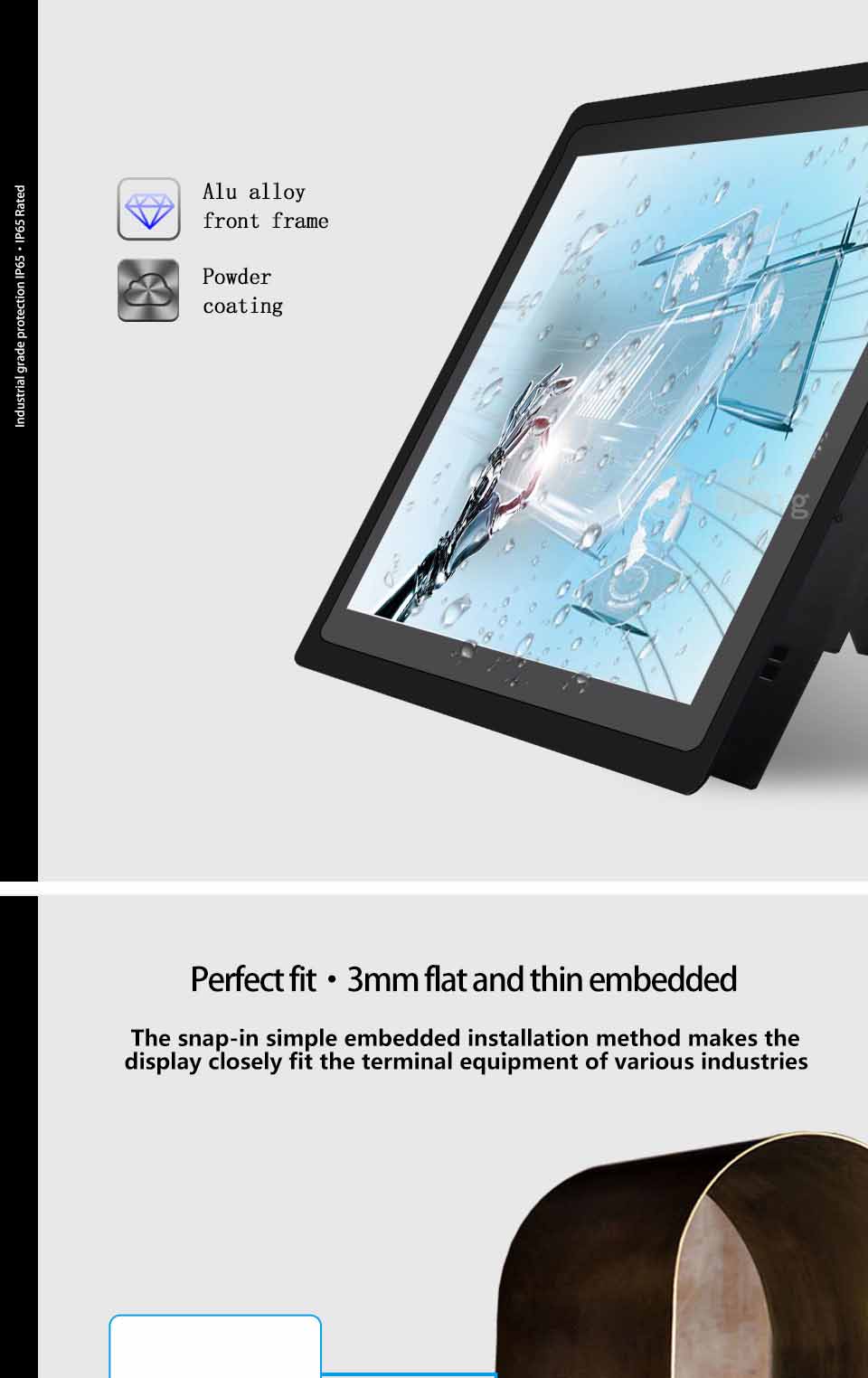

| Protection class | Surface IP65 | |
| Power supply | DC12V（±10%） | |

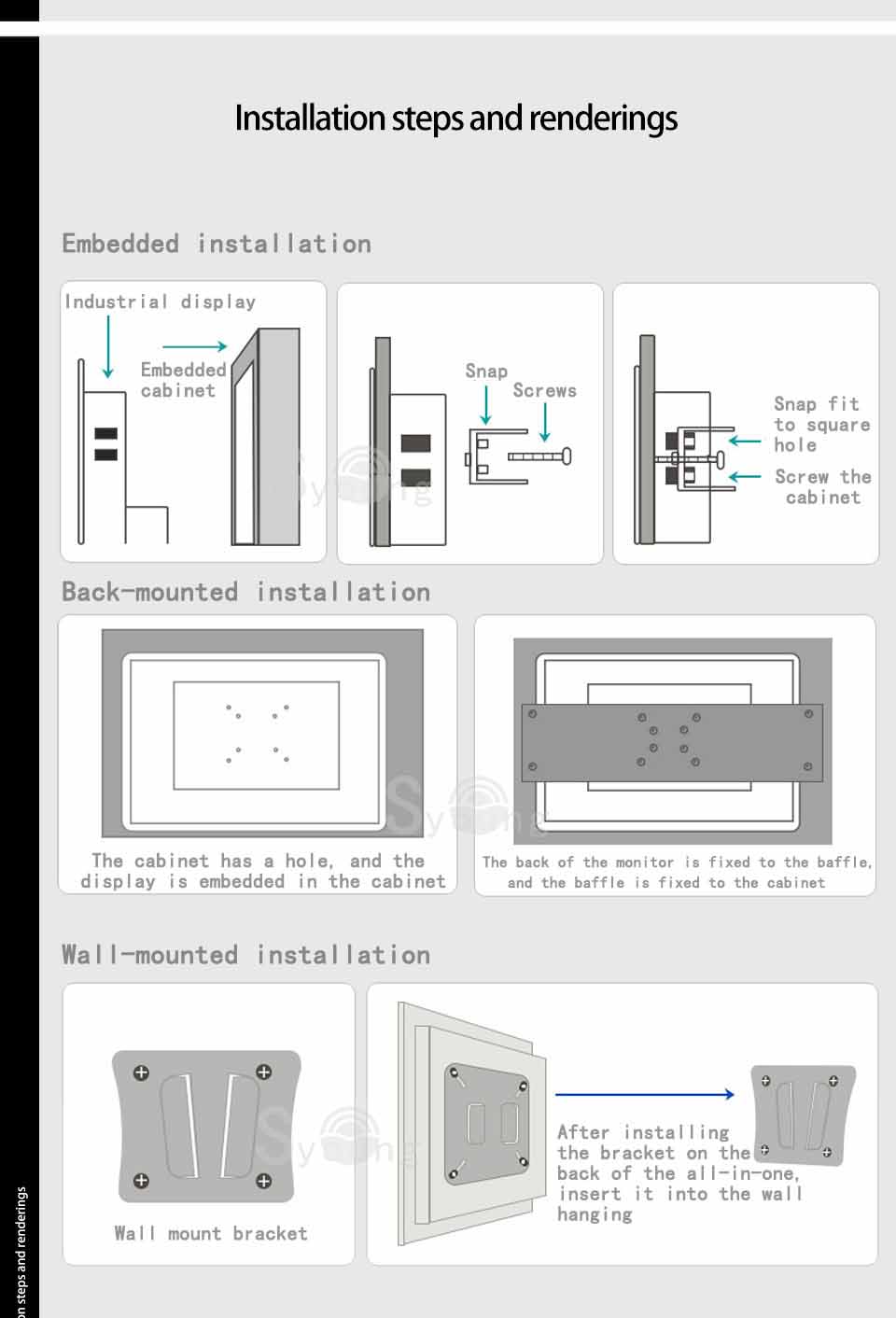

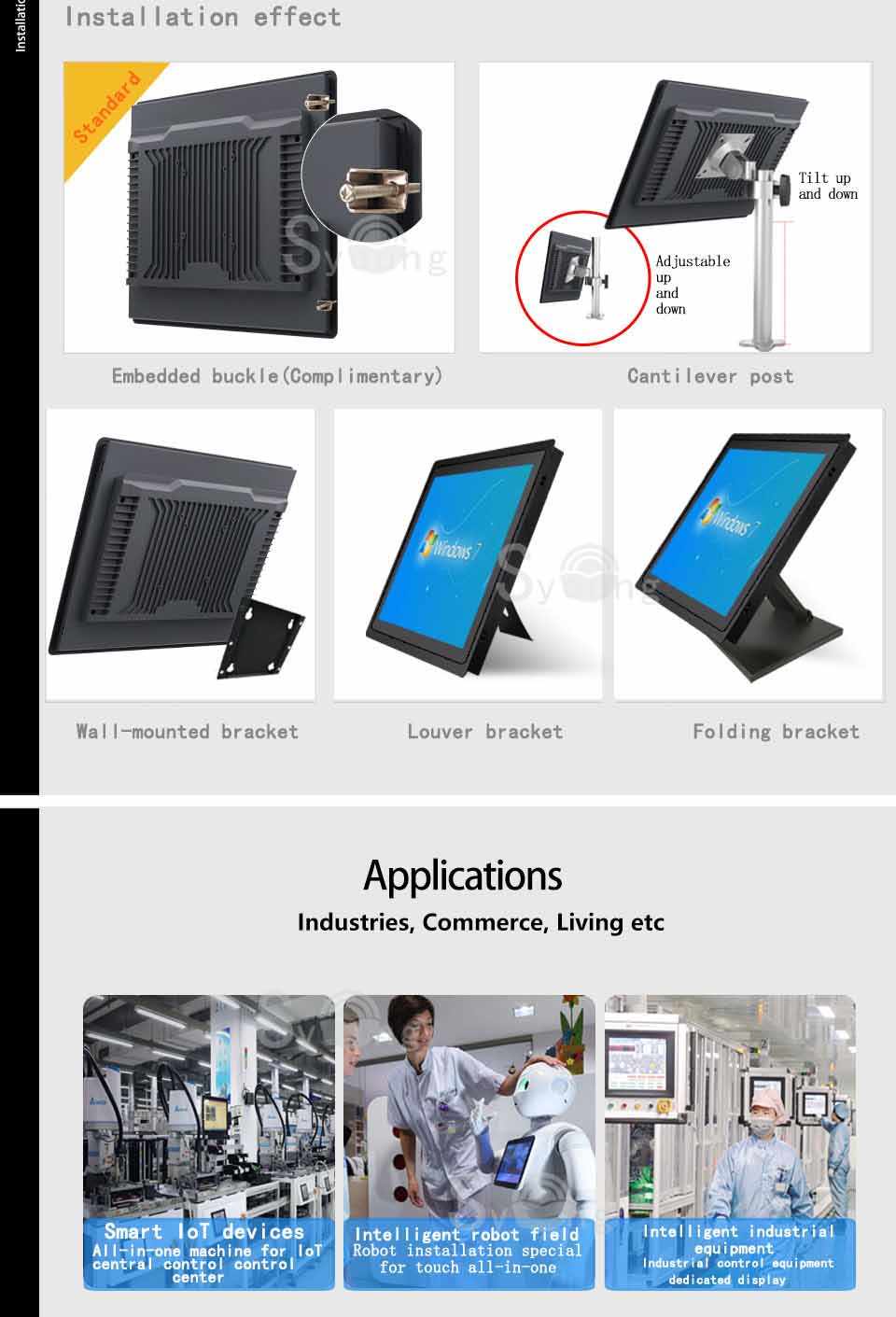

| Installation method |
em |
|
| Packing List | Machine*1 Power Adapter*1 Power Cord*1 Instruction Manual*1 Certificate*1 | |
Teaching computer calligraphy model integrated desk
Registration terminal printing terminal inquiry terminal self-service physical examination all-in-one machine
CNC machine tools manufacturing industrial control cabinets industrial automation production lines
Robots intelligent production lines express cabinets intelligent terminals visual terminals
Registration terminal printing terminal inquiry terminal self-service physical examination all-in-one machine
CNC machine tools manufacturing industrial control cabinets industrial automation production lines
Robots intelligent production lines express cabinets intelligent terminals visual terminals
